Spring 공유 캘린더 프로젝트 - 2 (로그인)

2021/05/25(화)











Spring 공유캘린더 프로젝트 기본설정 참고

https://cordingdoah.tistory.com/111

Spring 공유 캘린더 프로젝트 - 1 (기본 설정)











로그인을 구현해보도록 하겠다

src/main/java 밑에 패키지 생성

- org.alpreah.domain

- org.alpreah.persistence

- org.zerock.controller



---



src/main/resources 밑에 폴더 생성

- mappers 폴더 밑에

   - memberMapper.xml 생성



---





views 밑에 jsp파일 생성

- login.jsp (로그인 화면)

- pw.jsp (비밀번호 찾기 후 찾은 비밀번호 출력화면)

- pwFind.jsp (비밀번호 찾기 화면)

- register.jsp (회원가입 화면)

- index.jsp (로그인 후 메인 화면)

---







연동하기 앞서 member 테이블을 mariaDB에 생성

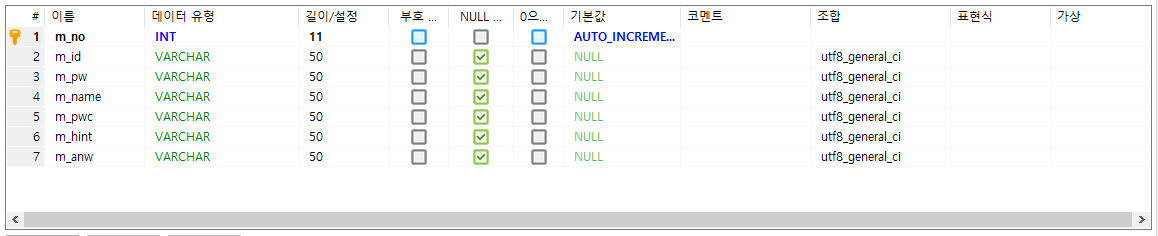

member테이블의 스키마





---









org.alpreah.domain 패키지 밑에 member.java 파일 생성

<member.java>

package org.alpreah.domain;

import lombok.Data;

@Data
public class member {
	private String m_name;
	private String m_id;
	private String m_pw;
	private String m_pwc;
	private String m_hint;
	private String m_anw;

	public String getM_name() {
		return m_name;
	}
	public void setM_name(String m_name) {
		this.m_name = m_name;
	}
	public String getM_id() {
		return m_id;
	}
	public void setM_id(String m_id) {
		this.m_id = m_id;
	}
	public String getM_pw() {
		return m_pw;
	}
	public void setM_pw(String m_pw) {
		this.m_pw = m_pw;
	}
	public String getM_pwc() {
		return m_pwc;
	}
	public void setM_pwc(String m_pwc) {
		this.m_pwc = m_pwc;
	}
	public String getM_hint() {
		return m_hint;
	}
	public void setM_hint(String m_hint) {
		this.m_hint = m_hint;
	}
	public String getM_anw() {
		return m_anw;
	}
	public void setM_anw(String m_anw) {
		this.m_anw = m_anw;
	}
}



회원의 정보를 담을 변수와 메소드 생성









org.alpreah.persistence 패키지 밑에 member_dao.java 생성

<member_dao.java>

package org.alpreah.persistence;

import javax.inject.Inject;
import javax.servlet.http.HttpSession;

import org.alpreah.domain.member;
import org.apache.ibatis.session.SqlSession;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;
import org.springframework.stereotype.Service;

@SuppressWarnings("unused")
@Repository
public class member_dao {
	@Autowired
	private SqlSession session;
	private static final String NameSpace = "memberMapper.";

	public int Id_Check(member m) {
		try {
			return session.selectOne(NameSpace + "Id_Check", m);
		}
		catch (Exception e) {
			e.printStackTrace();
			return -1;
		}
	}

	public int Register(member m) {
		int Id_Check_Result = Id_Check(m);
		if(Id_Check_Result != 0) return Id_Check_Result;

		try {
			session.insert(NameSpace + "Register", m);
			return 0;
		}
		catch (Exception e) {
			e.printStackTrace();
			return -2;
		}
	}

	public int Login(member m, HttpSession Hsession) {
		int Id_Search_Result = -1;
		try {
			Id_Search_Result = session.selectOne(NameSpace + "Login", m);
		}
		catch (Exception e) {
			e.printStackTrace();
			return -1;
		}

		if(Id_Search_Result != 1) return Id_Search_Result;

		try {
			member m_info = session.selectOne(NameSpace + "Login_Info", m);
			Hsession.setAttribute("m", m_info);
			return 1;
		}
		catch (Exception e) {
			e.printStackTrace();
			return -2;
		}
	}
	public int pwFind(member m, HttpSession Hsession) {
		int Id_Search_Result = -1;
		try {
			Id_Search_Result = session.selectOne(NameSpace + "Pw_find", m);
		}
		catch (Exception e) {
			 e.printStackTrace();

			return -1;
		}

		if(Id_Search_Result != 1) return Id_Search_Result;

		try {
			member m_info = session.selectOne(NameSpace + "Pw", m);
			Hsession.setAttribute("m", m_info);
			return 1;
		}
		catch (Exception e) {
			e.printStackTrace();
			return -2;
		}
	}
}

NameSpace를 통해 memeberMapper.xml을 연결하여 sql문을 사용 각 메소드의 값을 전달 받음









mappers 폴더 밑에 memberMapper.xml

<memberMapper.xml>

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="memberMapper">

	<select id="Id_Check" resultType="int">
		select count(*) from member m
		where m.m_id = #{m_id}
	</select>

	<insert id='Register'>
		INSERT INTO member (m_name, m_id, m_pw, m_pwc,
		m_hint, m_anw)
		VALUES (#{m_name}, #{m_id}, #{m_pw}, #{m_pwc},
		#{m_hint}, #{m_anw})
	</insert>

	<select id="Login" resultType="int">
		select count(*) from member m
		where m.m_id = #{m_id} and m.m_pw = #{m_pw}
	</select>

	<select id="Login_Info" resultType="Member">
		select * from member m
		where
		m.m_id = #{m_id} and m.m_pw = #{m_pw}
	</select>

	<select id="Pw_find" resultType="int">
		select count(*) from member m
		where m.m_id = #{m_id} and m.m_hint = #{m_hint} and m.m_anw = #{m_anw}
	</select>

	<select id="Pw" resultType="Member">
		select * from member m
		where m.m_id =
		#{m_id} and m.m_hint = #{m_hint} and m.m_anw = #{m_anw}
	</select>
</mapper>

각각 로그인, 회원가입, 비번찾기, 중복확인 같은 sql문으로 db를 조회해야할 때 memeberMapper.xml 사용









<mybatis_config.xml>

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<typeAliases>
		<typeAlias alias="Member" type="org.alpreah.domain.member" />
	</typeAliases>
</configuration>









org.zerock.controller 패키지 밑에 LoginController.java 생성

<LoginController.java>

package org.zerock.controller;

import javax.inject.Inject;
import javax.servlet.http.HttpSession;

import org.alpreah.domain.member;
import org.alpreah.persistence.member_dao;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.core.MethodParameter;
import org.springframework.http.MediaType;
import org.springframework.http.converter.json.MappingJackson2HttpMessageConverter;
import org.springframework.http.converter.json.MappingJacksonValue;
import org.springframework.http.server.ServerHttpRequest;
import org.springframework.http.server.ServerHttpResponse;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.servlet.mvc.method.annotation.AbstractMappingJacksonResponseBodyAdvice;

import com.fasterxml.jackson.databind.DeserializationFeature;
import com.fasterxml.jackson.databind.ObjectMapper;

@Controller
public class LoginController {

	@Autowired
	private member_dao m_dao;

	@RequestMapping(value = "/", method = RequestMethod.GET)
	public String login() {
		return "login";
	}

	@ResponseBody
	@RequestMapping(value = "Login", method = RequestMethod.POST)
	public int login(member m, HttpSession session) {
		return m_dao.Login(m, session);
	}

	@RequestMapping("/pwFind")
	public String pwFind() {
		return "pwFind";
	}

	@ResponseBody
	@RequestMapping(value = "PwFind", method = RequestMethod.POST)
	public int pwFind(member m, HttpSession session) {
		return m_dao.pwFind(m, session);
	}

	@RequestMapping("/pw")
	public String pw() {
		return "pw";
	}

	@RequestMapping(value = "/register", method = RequestMethod.GET)
	public String register() {
		return "register";
	}

	@ResponseBody
	@RequestMapping(value = "/register", method = RequestMethod.POST)
	public int register(member m) {
		return m_dao.Register(m);
	}

	@RequestMapping(value = "/index", method = RequestMethod.GET)
	public String index() {
		return "index";
	}

	@RequestMapping(value = "/logout", method = RequestMethod.GET)
	public String logout(HttpSession session) {
		session.removeAttribute("m");
		return "redirect:/";
	}

	@RequestMapping(value = "/show", method = RequestMethod.GET)
	public String show() {
		return "show";
	}

	@ControllerAdvice
	public class JsonpAdviceController extends AbstractMappingJacksonResponseBodyAdvice {
		public JsonpAdviceController() {
			super();
		}

		@Override
		protected void beforeBodyWriteInternal(MappingJacksonValue bodyContainer, MediaType contentType,
				MethodParameter returnType, ServerHttpRequest request, ServerHttpResponse response) {
			// TODO Auto-generated method stub

		}
	}

	@Bean
	public MappingJackson2HttpMessageConverter mappingJackson2HttpMessageConverter() {
		MappingJackson2HttpMessageConverter jsonConverter = new MappingJackson2HttpMessageConverter();
		ObjectMapper objectMapper = new ObjectMapper();
		objectMapper.configure(DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES, false);
		jsonConverter.setObjectMapper(objectMapper);
		return jsonConverter;
	}

}

requestMappting을 통해서 처음 실행하면 login.jsp 실행











views 폴더 밑에 login.jsp 파일 생성

<login.jsp>

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<link href="//maxcdn.bootstrapcdn.com/bootstrap/4.1.1/css/bootstrap.css" rel="stylesheet" id="bootstrap-css">
<script src="//maxcdn.bootstrapcdn.com/bootstrap/4.1.1/js/bootstrap.js"></script>
<script src="//cdnjs.cloudflare.com/ajax/libs/jquery/3.2.1/jquery.js"></script>

<meta charset="UTF-8">

<title>로그인 데모</title>
</head>
<body>
    <div id="login">
        <h3 class="text-center text-white pt-5">Login form</h3>
        <div class="container">
            <div id="login-row" class="row justify-content-center align-items-center">
                <div id="login-column" class="col-md-6">
                    <div id="login-box" class="col-md-12">
                        <form id="login-form" class="form" action="" method="post">
                            <h3 class="text-center text-info">Login</h3>
                            <div class="form-group">
                                <label for="username" class="text-info">Id:</label><br>
                                <input type="text" name="m_id" id="m_id" class="form-control" placeholder="ID">
                            </div>
                            <div class="form-group">
                                <label for="password" class="text-info">Password:</label><br>
                                <input type="password" name="m_pw" id="m_pw" class="form-control" placeholder="Password">
                            </div>
                            <br>
                			<div class="form-group" style="display:flex;">
                				<button id="login_process" type="button" class="btn btn-info btn-md" style="margin: 0 auto;">Submit</button>
                			</div>
                            <div id="register-link" class="text-right">
                                <a href="/register" class="text-info">Register here</a>
                            </div>
                            <div class="text-right">
                            	<a href="/pwFind" class="text-info">Password Serch</a>
                            </div>
                        </form>
                    </div>
                </div>
            </div>
        </div>
    </div>
<script
		src="https://ajax.aspnetcdn.com/ajax/jQuery/jquery-3.3.1.min.js"></script>
	<script>
		$(document).ready(function() {
			$("#login_process").click(function() {
				var json = {
					m_id : $("#m_id").val(),
					m_pw : $("#m_pw").val()
				};

				for ( var str in json) {
					if (json[str].length == 0) {
						alert($("#" + str).attr("placeholder") + "를 입력해주세요.");
						$("#" + str).focus();
						return;
					}
				}

				$.ajax({
					type : "post",
					url : "Login",
					data : json,
					success : function(data) {
						switch (Number(data)) {
						case 0:
							alert("아이디 또는 비밀번호가 일치하지 않습니다.");
							break;
						case 1:
							window.location.href = "/index?m_id=" + $("#m_id").val();

						default:
							break;
						}
					},
					error : function(error) {
						alert("오류 발생" + error);
					}
				});
			});
		});
	</script>
</body>
</html>

id, password 입력창을 띄우고 submit 버튼을 생성

회원가입과 비번찾기는 a 태그를 주어 하이퍼링크를 걸어줌

submit 버튼을 클릭시 id 값인 login_process를 이용하여 jQuery문으로 클릭을 받아 jason과 ajax를 사용하여

id, 비밀번호 일치 여부를 판단 후 일치하면 index.jsp로 아이디값을 넘겨서 화면 전환

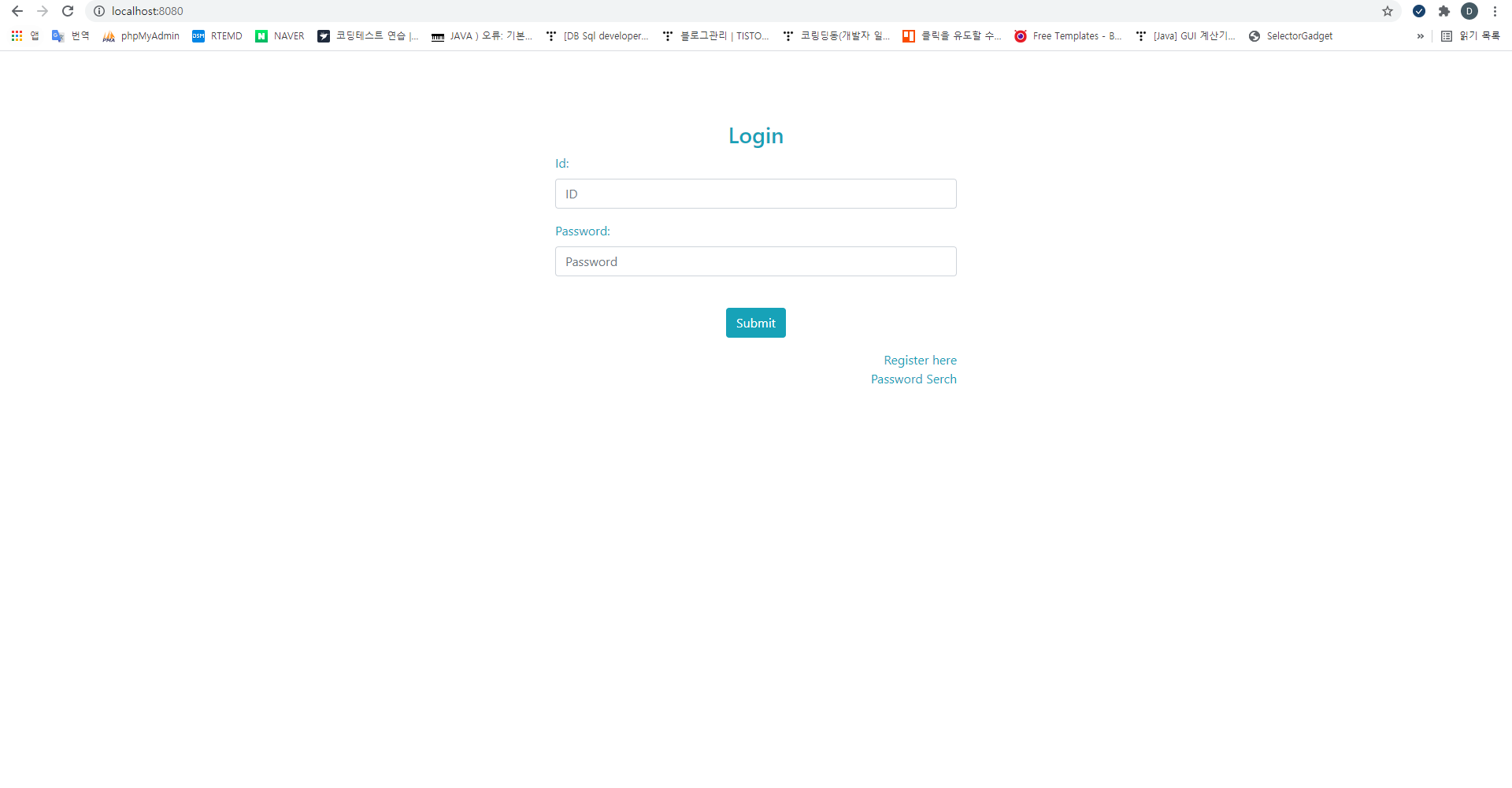

--> 결과화면
